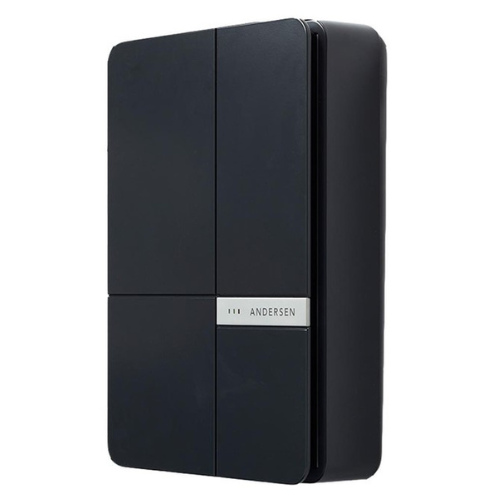

Andersen A2 installation
A home EV charger with a concealed cable and plug, a choice of metal or timber finishes, and up to 8.5m of cable reach.
The Andersen A2 keeps its Type 2 cable attached and ready to use. When you finish charging, wind the cable back into the unit and return the plug to its compartment. Once closed, the front of the charger is all you see.
Choose the 7kW A2 for single-phase charging with a 5.5m or 8.5m cable. If you have a suitable three-phase supply and a car that accepts faster AC charging, the 22kW A2 comes with a 6.5m cable.
Elecology completes a free desktop survey of your property. We’ll check which cable reaches your car, agree the installation route and confirm your chosen finish in a tailored, fixed-price quote before you book.
Already have your Andersen A2? We can install it too.
Free desktop survey · Fixed-price quote · No upfront payment
Andersen A2 key features
Charging and smart features
- Charging speed
- 7kW on a single-phase supply or up to 22kW with the three-phase A2, a suitable supply and a compatible car.
- Cable
- Concealed, attached Type 2 cable. Choose 5.5m or 8.5m on the 7kW model. The 22kW model has a 6.5m cable.
- Cheaper-rate charging
- Schedule charging for your off-peak hours. The 7kW A2 also supports direct integration with selected smart EV tariffs, subject to supplier eligibility.
- Solar charging
- Surplus solar charging is available on the 7kW A2 with compatible monitoring. Andersen lists this feature for the 7kW version only.
- Connection
- Wi-Fi for connected app features and remote charger management.
- Security
- Lock the charge point through the Andersen app to restrict charging when you’re away.
- Home load balancing
- Adaptive Fuse monitoring on the 7kW A2 can reduce charging demand when your home needs more electricity. We’ll assess supply capacity separately for a 22kW installation.
- Standout feature
- Both the cable and plug store out of sight, including the longer 8.5m cable on the 7kW model.
Design and specifications
- Dimensions
- Andersen lists the A2 at 494mm high × 348mm wide × 148mm deep. We’ll check clearance for your chosen finish, plug access and cable storage.
- Colour options
- Choose a body colour and front panel combination, with painted metal, timber and selected special-edition finishes.
- Installation location

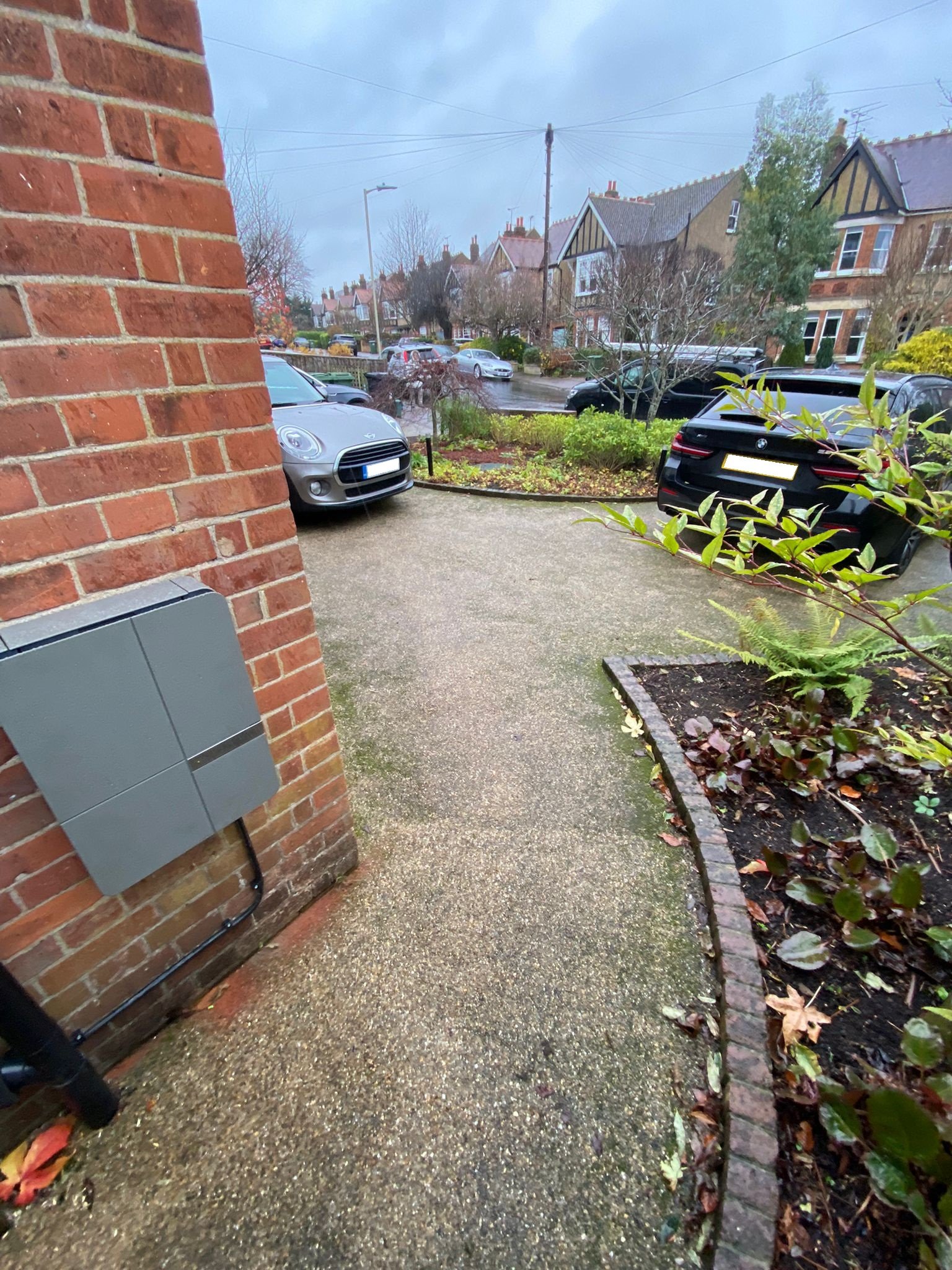

- Suitable for a garage or an outside wall beside your parking space. Choose a position where you can stand comfortably to wind the cable away.
- Charging information
- Use the Andersen app to check charging activity and manage your settings.
- Charger warranty
- Seven-year Andersen cover is available on qualifying installations, subject to registration and warranty terms. We’ll confirm the applicable cover in your quote.
How much does Andersen A2 installation cost?
Your installed price depends on the A2 you choose and the work needed to connect it at your property. Our free desktop survey gives you one fixed price for the agreed charger, equipment and installation before you book.
What affects the installation price?
- Power rating. A 7kW single-phase installation and a 22kW three-phase installation have different electrical requirements.
- Cable and finish. Your cable length, body colour and choice of front panel determine the charger configuration.
- Installation cable route. We assess the distance from your electricity supply and how the cable can reach the A2.
- Monitoring and protection. Your quote includes the electrical equipment and monitoring connections agreed during the survey.
- Existing equipment. Tell us if you already own an A2 so we can quote for installing your unit.
Your tailored, fixed-price quote
We’ll set out the model, charging cable length, finish, mounting position, installation route and total price. You can review the plan and ask questions before choosing a date.
Your quoted price is fixed and won’t change after quotation.
No upfront payment
We don’t ask for payment upfront because we’re confident you’ll be happy with your installation. Once the work has been completed, we’ll email your invoice and payment details.
Free desktop survey · Fixed-price quote · No upfront payment
Everyday charging with the Andersen A2
The right A2 is the one you can reach comfortably every day. Check where you park before deciding on the cable length or the wall where the charger will sit.
Use the hidden cable
Take out the Type 2 plug and unwind enough cable to reach the car. After charging, wind it back into the storage area and put the plug away. There’s no separate charging cable to fetch from the boot.
Choose between 5.5m and 8.5m on the 7kW A2
Measure from the proposed charger position to the car’s port, following the path the cable would actually take. The 8.5m option is useful if the port is on the far side of the car or two cars take turns using different parking spaces.
Plan charging around your electricity tariff
If your tariff has fixed off-peak hours, set a schedule to match. For the 7kW A2, Andersen lists direct integrations with Intelligent Octopus Go, OVO Charge Anytime and EDF GoElectric. Check your supplier’s eligibility and setup instructions.
Manage access from your phone
Use the Andersen app to check charging and lock the unit. This is useful if the charger is accessible from the pavement or a shared drive. Storing the plug keeps it out of sight; the app lock controls charging access.
Charging on a detached garage?
Check Wi-Fi coverage beside the garage wall and send us a photo showing the route from the house. Both the network connection and the electrical cable route are worth checking before you settle on the position.
Andersen A2 solar charging and home load balancing
If you want the car to charge from surplus solar, tell us before choosing your power rating. Andersen lists solar integration on the 7kW A2, and we’ll check the monitoring arrangement during your survey.
Use spare solar power on the 7kW model
When your car is plugged in during daylight, a compatible setup can use electricity your panels generate beyond what the house is using. The amount available changes as appliances switch on and solar output rises or falls.
Keep enough capacity for household appliances
The 7kW A2 is supplied with an Adaptive Fuse CT clamp. Once connected and configured, it monitors demand on your supply so the charger can reduce its draw when the house needs more power.
Check the fit for a three-phase home
Having a three-phase supply gives you a choice. If your car can accept 22kW AC and you need faster top-ups, we can assess the 22kW A2. If surplus solar or the 8.5m cable matters more, ask us to assess the 7kW version.
Plan around your home battery
A battery set to supply the house may also supply the car. If you want to keep stored electricity for the evening, tell us your battery and inverter models. We’ll assess the connection and identify any settings to check with your battery installer.
What to include in your survey
Send photos of the electricity meter, the space around your incoming supply and any solar or battery equipment. We’ll explain the monitoring connections and installation work included in your fixed-price quote.
How your Andersen A2 installation works
-
Complete your free desktop survey
Send photos of your electricity supply, preferred wall and parking space. Tell us which car you drive, how you park and which finish you like.
-
Receive your fixed-price quote
We’ll check the supply, cable reach and installation route. Your quote confirms the power rating, cable length, finish, equipment and total price.
-
Arrange your installation date
Once you accept the quote, we’ll arrange the next steps. If your local electricity network operator needs to approve the installation, we’ll book the work once approval comes through.
-
Have your A2 installed
Your engineer fits the charger in the agreed position and installs the supply cable, protective equipment and monitoring connections set out in your plan.
-
Test the installation and set up charging
We test the installation and show you how to store the cable, use the app and manage charging. Have your phone and Wi-Fi details available for handover.
-
Pay after completion
Once the work has been completed, we’ll email your invoice and payment details.
Free desktop survey · Fixed-price quote · No upfront payment
Why choose Elecology for your Andersen A2 installation?
The A2 hides the cable you plug into your car. How the electrical supply cable reaches the charger depends on your property. We agree that route with you before you book.
A charger position that suits your driveway
We check where the charging port sits, how much cable you need and whether there’s room to stand beside the unit and wind it away.
A fixed price before you book
Your quote sets out the charger, finish, cable route and installation work. You can review the details and ask us questions before deciding.
No upfront payment
We don’t ask for payment upfront because we’re confident you’ll be happy with your installation. Once the work has been completed, we’ll email your invoice and payment details.
Help choosing between 7kW and 22kW
We’ll consider your car’s AC charging limit, your electricity supply, cable reach and whether you want to use solar or a smart tariff.
Three-year installation warranty
Elecology covers defects in our installation labour and materials for three years. Andersen provides separate product cover under its manufacturer warranty terms.
Support after installation
Contact our team if you have a question about the installation. If the charger needs manufacturer diagnostics, we’ll explain how to get support.
Andersen A2 installation FAQs
Find answers about the hidden cable, charging speeds, solar compatibility and choosing the right Andersen A2 for your parking space.
-
The A2 has an attached Type 2 cable for electric cars and plug-in hybrids with a Type 2 AC charging port. If you drive an older vehicle or are unsure about the connector, send us the make and model during your survey.
-
The 7kW A2 has a choice of 5.5m or 8.5m. The 22kW A2 has a 6.5m cable. All three configurations store the cable and plug inside the unit after use.
-
The A2 has an attached Type 2 cable for electric cars and plug-in hybrids with a Type 2 AC charging port. If you drive an older vehicle or are unsure about the connector, send us the make and model during your survey.
-
The 8.5m cable is a 7kW option. The 22kW A2 comes with a 6.5m cable. If you want three-phase charging and are unsure whether 6.5m will reach, send us a photo of the car parked in its usual position before ordering.
-
The 8.5m cable is a 7kW option. The 22kW A2 comes with a 6.5m cable. If you want three-phase charging and are unsure whether 6.5m will reach, send us a photo of the car parked in its usual position before ordering.
-
Measure from the proposed charger position to the car’s charging port, following the route around the vehicle. Choose a length that reaches comfortably without stretching or crossing a walking route. If two cars use the driveway, measure to both charging ports.
-
For the full 22kW, you need a suitable three-phase electricity supply and a vehicle that accepts 22kW AC. For example, a car with an 11kW onboard AC charger can draw up to 11kW from a suitable 22kW unit. Send us your vehicle model and supply photos if you’d like us to check.
-
Choose the 7kW A2 if you want Andersen’s integrated surplus solar charging. We’ll check the required monitoring and cable route during your survey. Andersen lists its solar feature for the 7kW A2 only.
-
Andersen lists direct Intelligent Octopus Go integration for eligible 7kW A2 chargers and excludes its 22kW A2 from that integration. If you already use a three-phase A2, check whether your supplier can manage charging through your vehicle instead.
-
A home battery can supply the car if it is set to discharge while charging is underway. Tell us the make and model of the battery and inverter if keeping stored electricity for the house is important to you.
-
Yes. You can lock the A2 through the Andersen app to restrict charging. The cable compartment keeps the plug out of sight when you put it away.
-
Yes. The A2 offers body and front panel combinations, including painted metal and timber finishes. Let us know your preference so we can confirm availability and include the correct combination in your quote.
-
The A2 conceals the cable between the charger and your car. The fixed electrical cable between your supply and the A2 follows the route agreed in your quote. Depending on the property, sections may be visible, clipped to the wall or enclosed in surface trunking.
-
Yes. Send us photos of the charger, its model label and any supplied accessories. We’ll confirm the version, assess the property and provide a tailored installation quote. If it’s an older A2, we’ll check its features against that particular unit.
-
Yes, subject to survey. Send photos of the existing charger, its electrical supply and any installation certificate. We’ll assess the wiring, protection, monitoring and mounting space. This is especially important if you want to move from single-phase to three-phase charging.
-
Andersen offers seven-year manufacturer cover on qualifying installations. The type of cover depends on how the unit was supplied and installed, and registration is required. We’ll confirm what applies to your charger. Elecology separately covers defects in our installation labour and materials for three years.
Get your Andersen A2 installation quote
Send us photos of your electricity supply and parking space, along with your vehicle model and preferred finish. We’ll help you choose the power rating and cable length, then give you a tailored, fixed-price installation quote.
